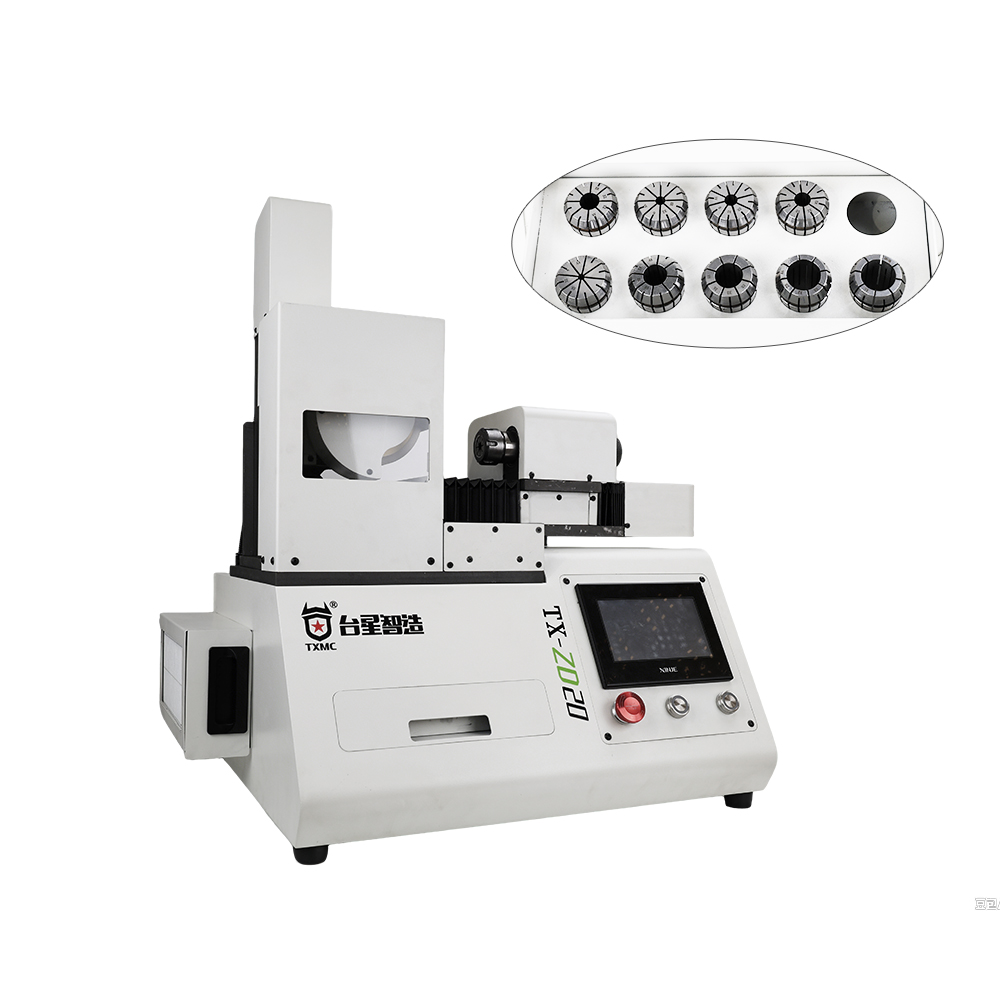

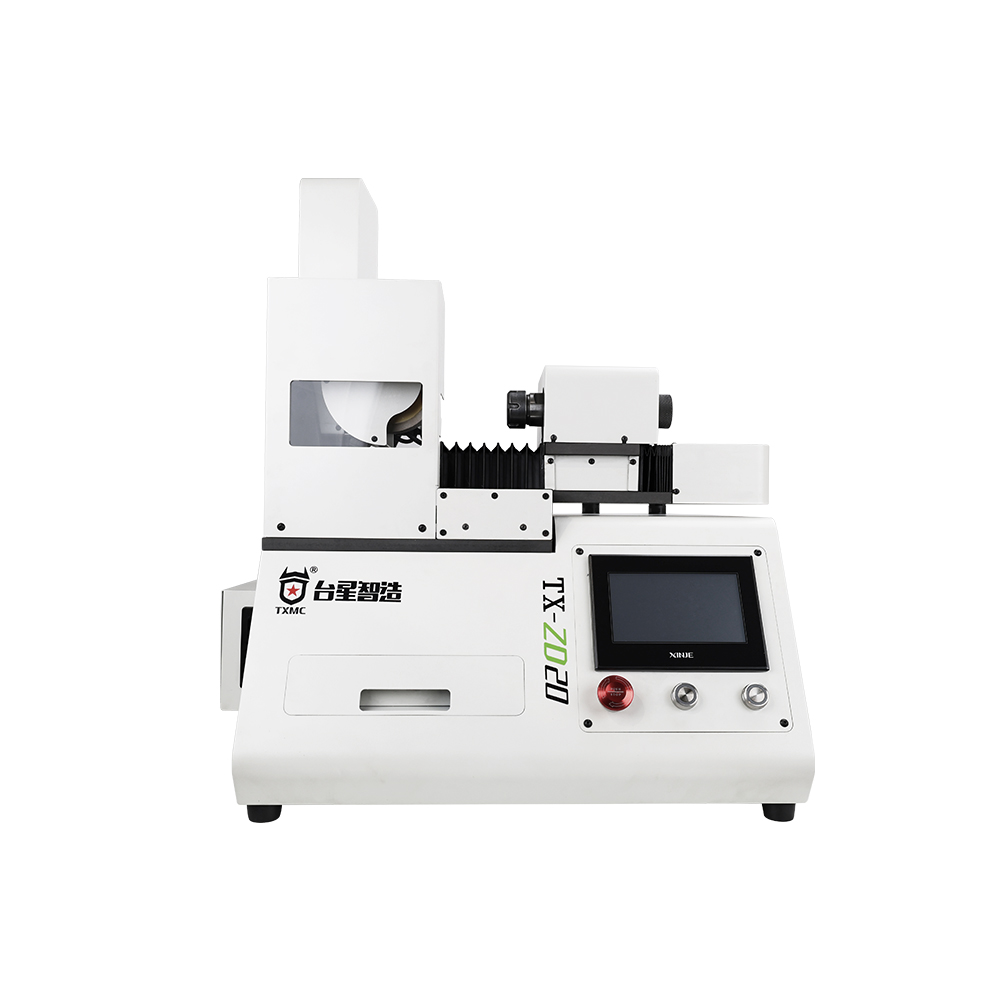

TX-ZD20 Standard Model: The standard configuration supports sharpening for 5 tool types: chamfering tools, drill bits, end mills, corner radius end mills, and ball nose end mills.
Optional accessories are available for parabolic drills, single-flute end mills, sheet metal drills, and PM (powdered metal) drills. The built-in dust extraction system effectively reduces dust pollution. The user-friendly PLC control system allows for easy operation, making it suitable for beginners with zero prior experience.
End Mill Corner Radius End Mill Diameter Range flutes Options | Drill Bit Diameter Range Angle Option | Ball Nose Diameter Range | Rated Tool Length |
4-20mm 2/3/4 Flutes | 4-20mm 120°,140°Optional | R2、R3、R4、R5、R6 | ≥60mm Hollow Core Holder |
Compatible Materials | Grinding wheel (Standard) | Dimensions (L×W×H) | Net Weight |
Tungsten steel Carbide HSS | Brazed SDC 2 pieces | 63.5*57*80cm | 85.5 kgs |
