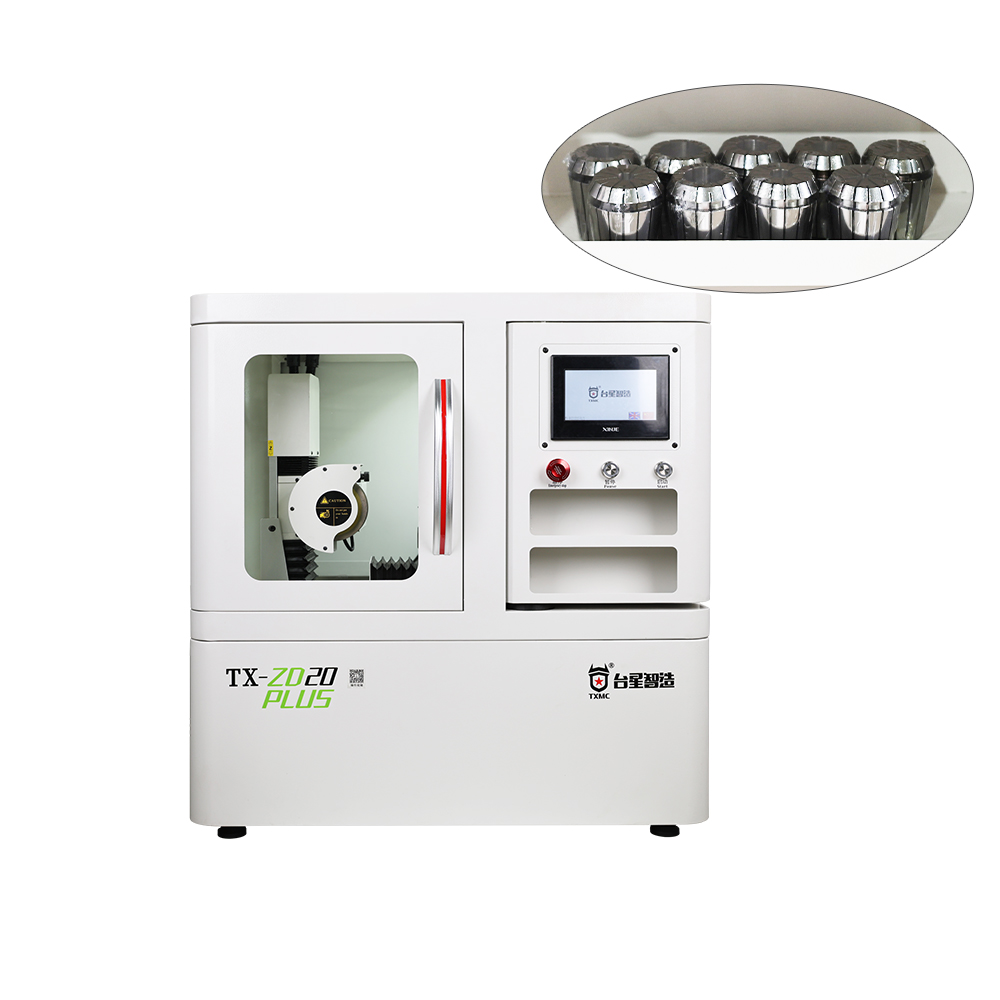

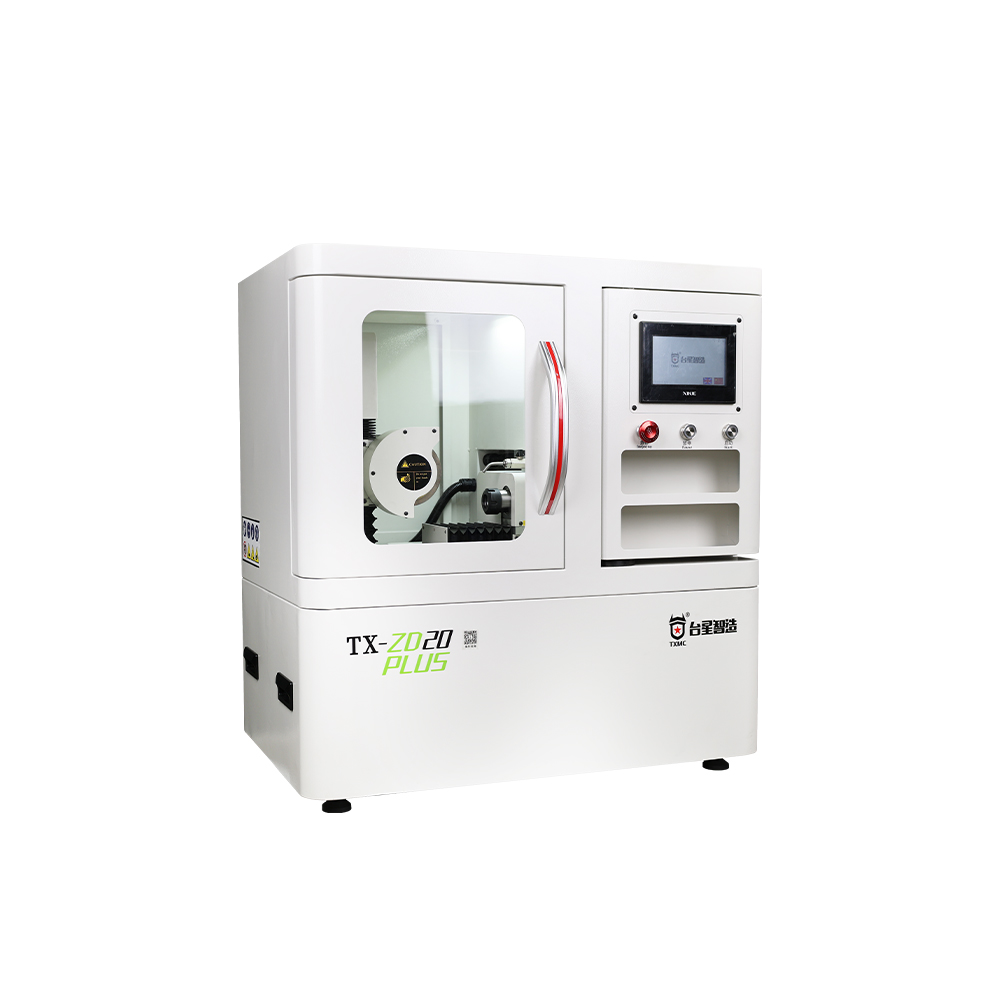

ZD20 PLUS Water-Cooled Model: This model also supports sharpening for 5 tool types: chamfering tools, drill bits, end mills, corner radius end mills, and ball-nose end mills, with optional accessories for parabolic drills, single-flute end mills, sheet metal drills, and PM drills. The water-cooled grinding process significantly enhances tool surface finish and extends the grinding wheel's service life. Its fully enclosed housing design ensures a pollution-free grinding environment.
End Mill Corner Radius End Mill Diameter Range flutes Options | Drill Bit Diameter Range Angle Option | Ball Nose Diameter Range | Rated Tool Length |
4-20mm 2/3/4 Flutes | 4-20mm 120°,140°Optional | R2、R3、R4、R5、R6 | ≥60mm Hollow Core Holder |
Compatible Materials | Grinding wheel (Standard) | Dimensions (L×W×H) | Net Weight |
Tungsten steel、Carbide、 High-Speed Steel Tool、Twist Drill | Brazed SDC 2 pieces | 90*60*92cm | 154.5 kgs |
